Item | Unit | Model |
IRL-930ES | IRL-1160ED | IRL-1420ED | IRL-1860ED |
Cooling Capacity (outlet liquid temperature -30℃) | kcal/h | 199520 | 249400 | 302720 | 399040 |
kW | 232 | 290 | 352 | 464 |
Cooling Capacity (outlet liquid temperature -20℃) | kcal/h | 320780 | 400760 | 486760 | 641560 |
kW | 373 | 466 | 566 | 746 |
Cooling Capacity (outlet liquid temperature -10℃) | kcal/h | 484180 | 607160 | 732720 | 968360 |
kW | 563 | 706 | 852 | 1126 |
Total Power Input | kW | 219 | 276 | 328 | 438 |
Maximum Running Current | A | 620 | 754 | 906 | 1240 |
Refrigerant | | R404A/R507 |
Steps Control | % | 0/25/50/75/100 |
Control Type | | Automatic Control, Color LCD Touch Screen |
Power Supply Type | | 3N，380V，50Hz |
Safety Protection Device | |
OverloD、 Inverse Phase、High/Low Pressure、 Safety Valve、 Water Flow、Oil Pressure、Oil Level、Exhaust Temperature、 Antifreeze Protection，etc
|
Compressor | Type | | Semi-hermetic Screw |
Start Type | | Y-Δ |
Amount | Sets | 1 | 2 |

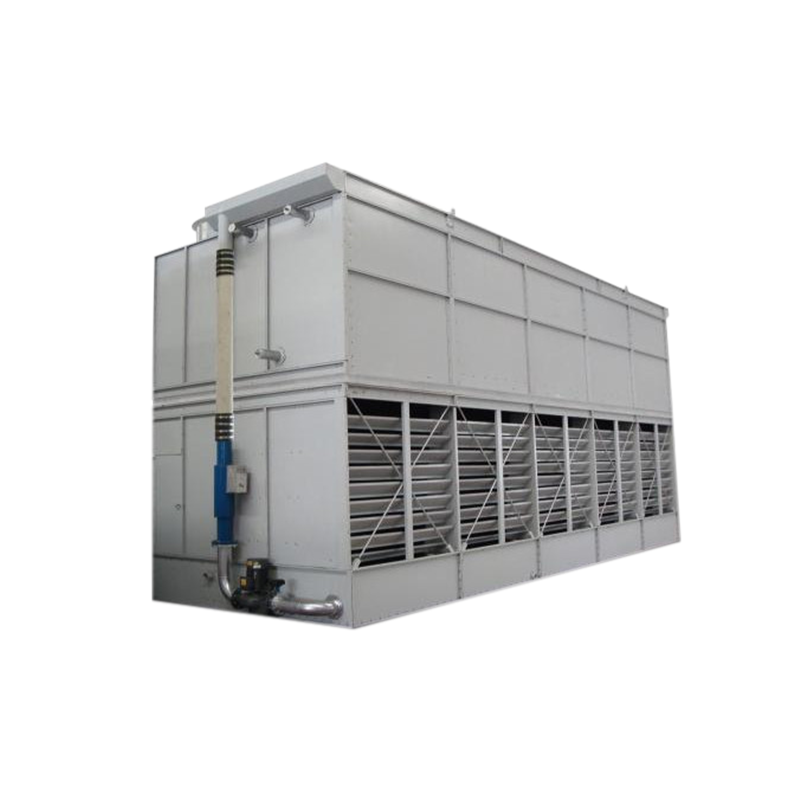

Condenser | Type | | Evaporation Type (Separate Supply) |
Spray Pump Power | kW | 4.0 | 4.0 | 5.5 | 5.5 |
Water Flow | m³/h | 170 | 170 | 230 | 230 |
FanPower | kW | 12 | 16.5 | 16.5 | 22.5 |
Air Flow | m³/h | 195000 | 213000 | 240000 | 320000 |
Evaporator | Type | | Shell And Tube Type |
Water Flow | m³/h | 118 | 148 | 179 | 236 |
Water Pressure Drop | kPa | 90 | 90 | 90 | 90 |
In/Out Pipe Size | DN | 150 | 150 | 200 | 250 |
Unit Outline Size (L×W×H) | mm | 3530*2000*2300 | 3790*2000*2300 | 4250*2200*2400 | 4560*2200*2400 |
Condenser Outline Size (L×W×H) | mm | 5320*2410*4940 | 5302*2610*4940 | 5790*3210*4940 | 7460*3210*4910 |
Unit weight | kg | 4860 | 5150 | 6550 | 835 |
Condenser weight | kg | 13450 | 14000 | 17350 | 20150 |
Refrigerant Charge | kg | 415 | 518 | 635 | 830 |
Remarks：
1.The above parameters are based on an ambient dry bulb temperature of 35℃ and a wet bulb temperature of 28℃.
2. The above parameters based on chilled water inlet/outlet temperature of 12℃/7℃, Ambient temperature 35 ℃.
