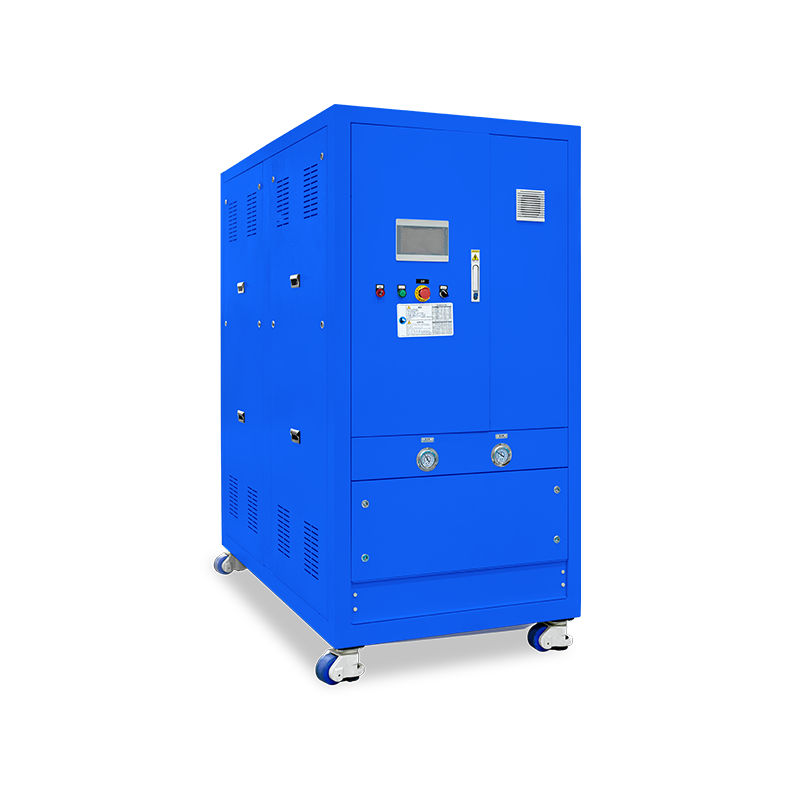

Process thermosat(-35℃~+200℃）

ITEM

Unit

IRD02W06KW-35

IRD03W09KW-35

IRD05W12KW-35

IRD10W18KW-35

IRD15W30KW-35

Cooling capacity（+20℃ ~+200℃)

kW

5.4

7.5

13.6

17.6

32.0

Cooling capacity(-5℃)

kW

2.5

3.6

6.5

13.5

24.2

Cooling capacity(-20℃)

kW

1.0

1.6

2.8

6.4

11.4

Heating capacity(-35℃)

kW

0.1

0.4

0.6

2.0

3.4

Heating capacity

kW

6.0

9.0

12.0

18.0

30.0

Compressor power

kW

2.6

2.9

5.0

8.2

14.0

Pump power

kW

0.8

0.8

1.5

2.2

2.2

Power input

kW

9.4

12.7

18.5

28.4

46.2

Running current

A

18.7

25.4

37.0

56.8

92.4

Rated flow

L/min

41

55

101

132

229

Pressure range

kPa

25～150

25～150

25～180

25～300

25～300

Oil Tank capacity

L

≥10

≥10

≥10

≥20

≥20

Cooling water flow

m³/h

1.9

2.5

4.5

6.2

10.7

Medium pipe

Inch

1.2"

1.2"

1.2"

2.0"

2.0"

Cooling water pipe

Inch

1.0"

1.0"

1.5"

2.0"

2.0"

Net weight

kg

300

350

420

500

850

Size(L×W×H)

mm

500*600*1500

600*700*1500

700*800*1800

800*1200*2000

1000*1200*2000
