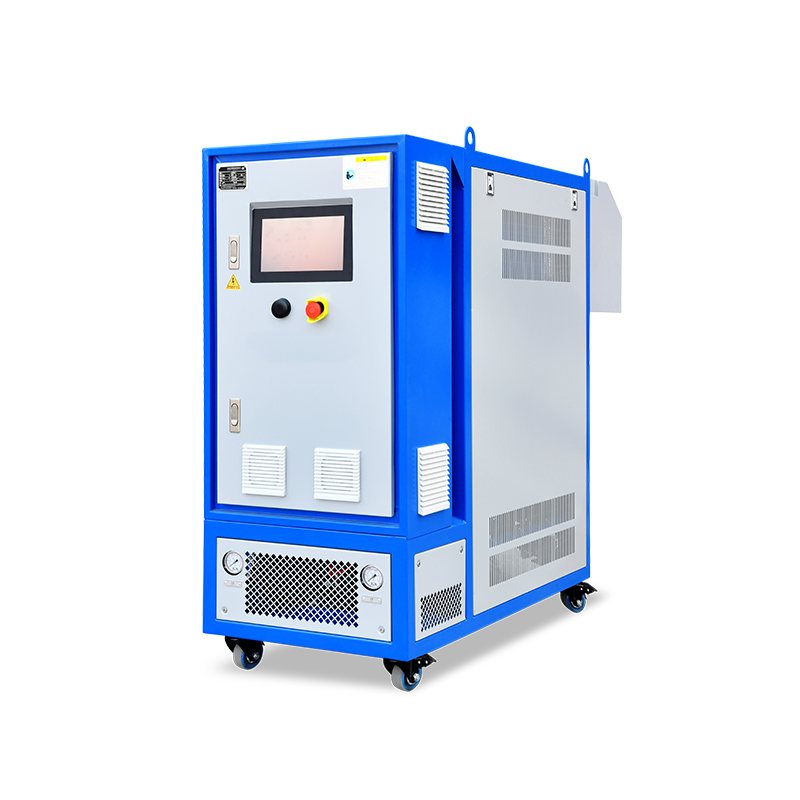

Water Temperature Control Unit For Die Casting

￭ Circulating pump
Magnetic drive, long time operation of continuous shaft/ prevent leak

￭ High heat conduction efficiency
About 6 times heat conduction oil

￭ Heater
Unique dry burning and scale resistant design

￭ IIOT
Flow rate, pressure and temperature can be monitored

￭ Safe and reliable
Boiler standard manufacture

￭ Energy conservation and environmental protection
Heat conduction medium is water, low cost

Product Description

ITEM	UNIT	MODEL
ITEM	UNIT	IRWT180D-24T/2	IRWT200D-24T/2
Temp control range	℃	+25℃~180℃ Inlet water temperature	+25℃~200℃ Inlet water temperature
Temp control accuracy	℃	PID ±1
Power supply		AC 3N-380V/400V-50HZ（3 phase+Earth）
Heat transfer medium		Water
Cooling method		Indirect Cooling
Cooling power	KW	350KW @180℃	400KW @200℃
Heating capacity	KW	24*2	24*2
Motor power	KW	2.5*2	2.5*2
Pump flow	L/min	90	90
Pump head	m	90	90
Max. power consumption	KW	54.5	57.4
Alarm function		Pump reversal/Water shortage/Overheating/Overloading/High pressure/pressure divergence/flow divergence
Circulating water pipe	inch	1" * 2
Cooling water pipe	inch	1"+1"
Size(L×W×H)	mm	13506001300
